Benefits of the overfill and crossover prevention system O2-PID

3 important tasks are served by the O2-PID

• Control of correct connection of hoses (ASS)

• Product identification for cross over prevention (QSS/COP)

• Overfill prevention for the fuel drop

O² PID Benefits

Much easier handling of the fuel drop.

No extra cable at the tank truck is needed for the overfill prevention.

The electrical connection is realized by conductive hoses.

Automatic realization of the hose connection control.

Reliable low power optical sensor.

According EN 13616 and EN 14116

Product mix is no longer possible because of the product identification.

The product code is stored in the O²PID and can easily be

changed by the customer.

O² PID Application

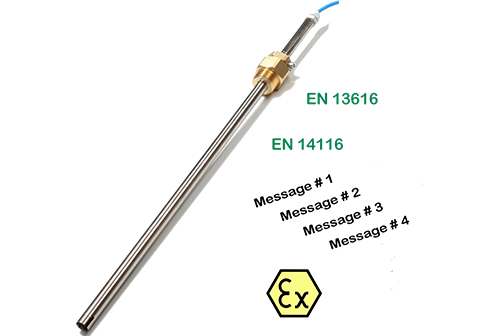

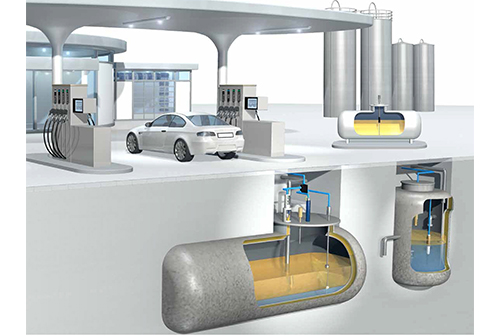

The filling sensor is a safety mechanism to prevent overfilling of storage and bunker tanks, when they are filled with gasoline, diesel and fuel oil from road tankers. lt consists of a level sensor inside the road tanker.

The QSS/COP and the ASS functionality are part of the O² PID safety system that prevent the blending of products due to a faulty connection and checks the hose connection to the road tanker during the filling process.
